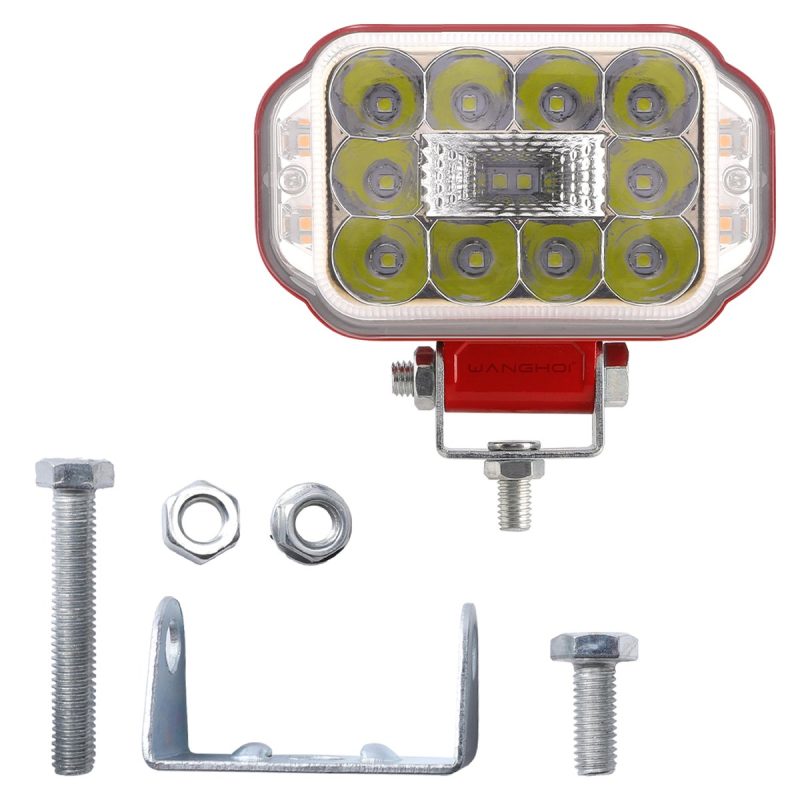

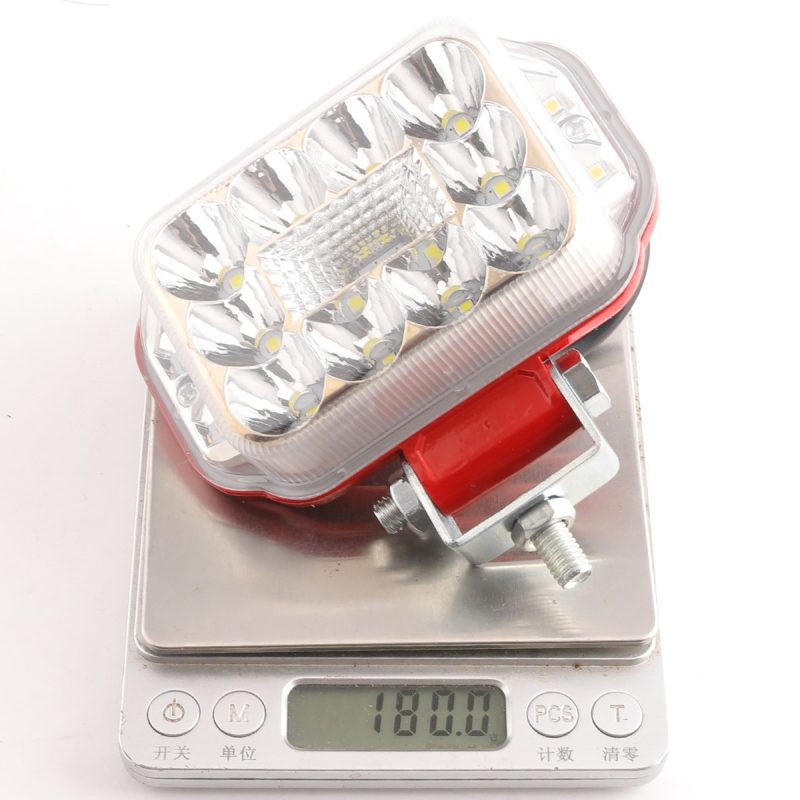

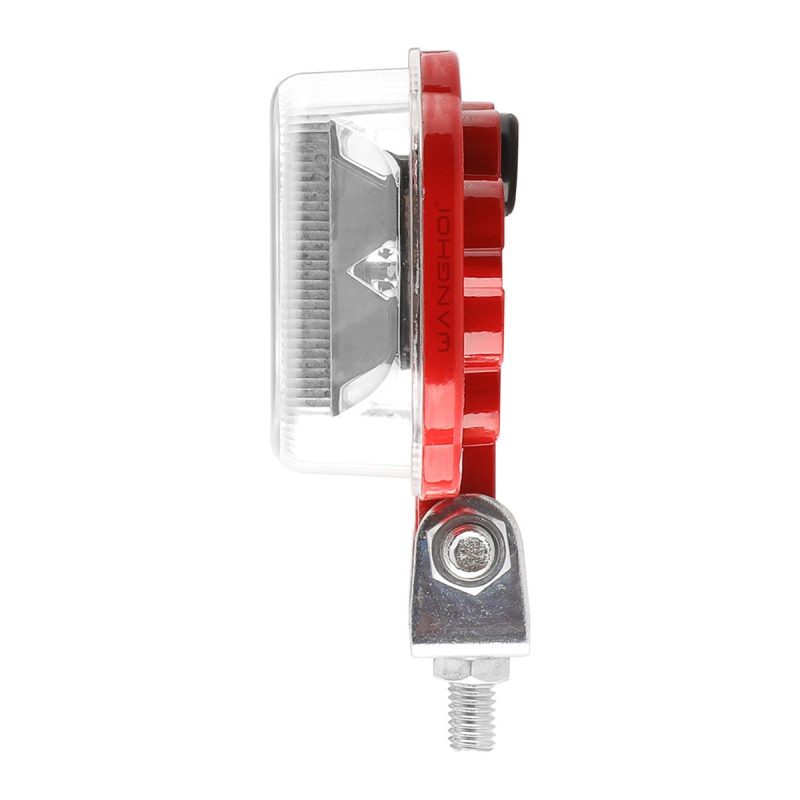

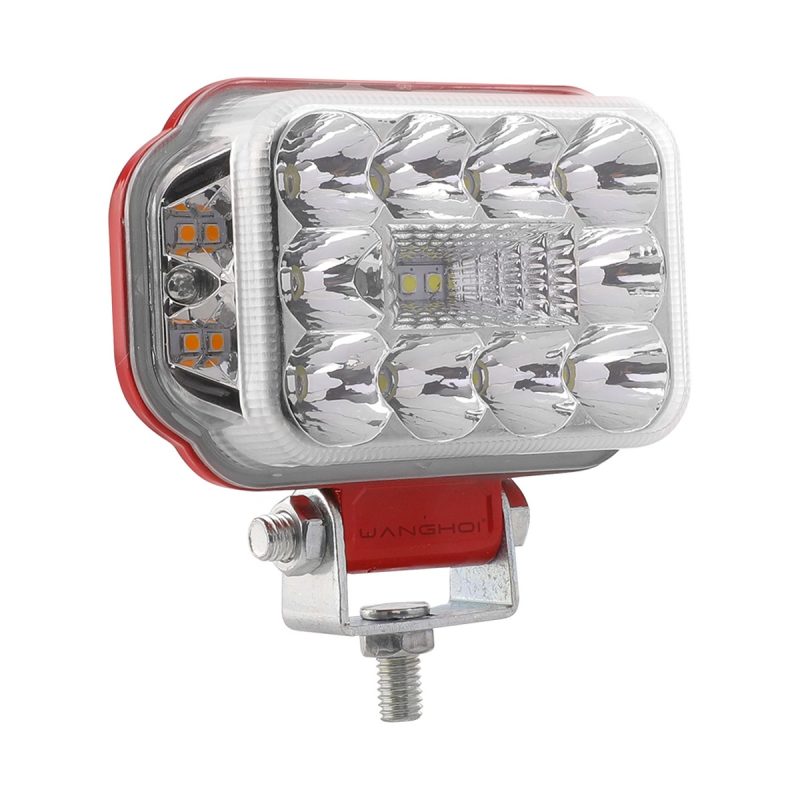

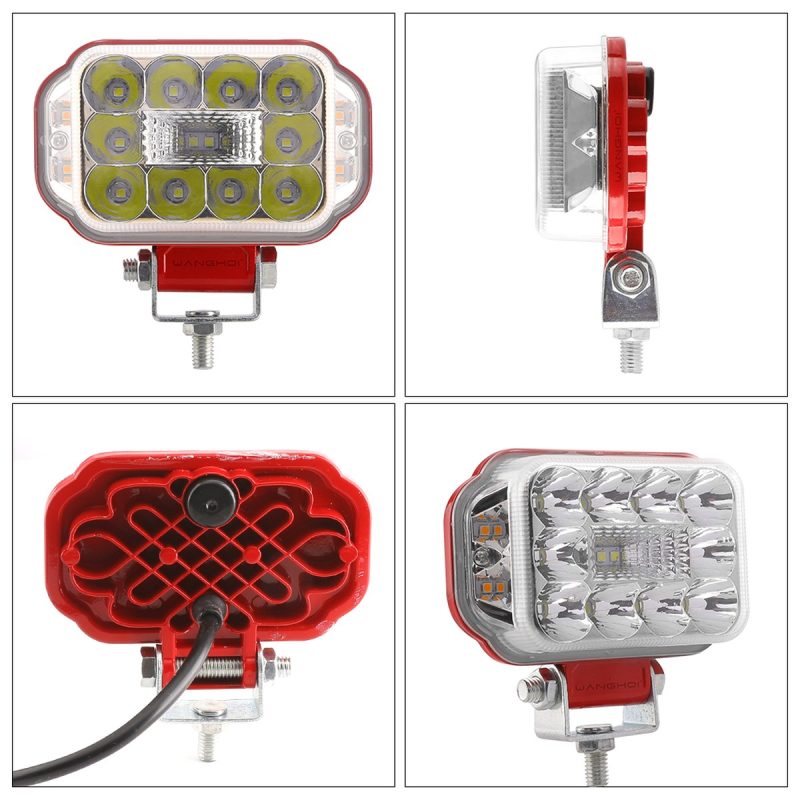

109mm Square Chinese Knot LED Work Light is a compact auxiliary work-light option for B2B automotive lighting distributors, retrofit shops, and accessory programs. The selected gallery uses supplied product-only images for the front lens, side profile, rear housing, mounting hardware, sample weight, and specification reference.
This page is separated from the existing 145mm / 165mm Chinese-knot work-light page because the supplied specification image shows a 109mm body-width reference. Final order details should still be confirmed by exact sample, wiring, packing, and destination-market requirements before quotation.
Key Features
- 109mm square Chinese-knot LED work-light direction shown in the supplied specification image.
- 12-24V voltage reference, yellow/white color reference, and 50,000-hour life note are listed in the source specification graphic.

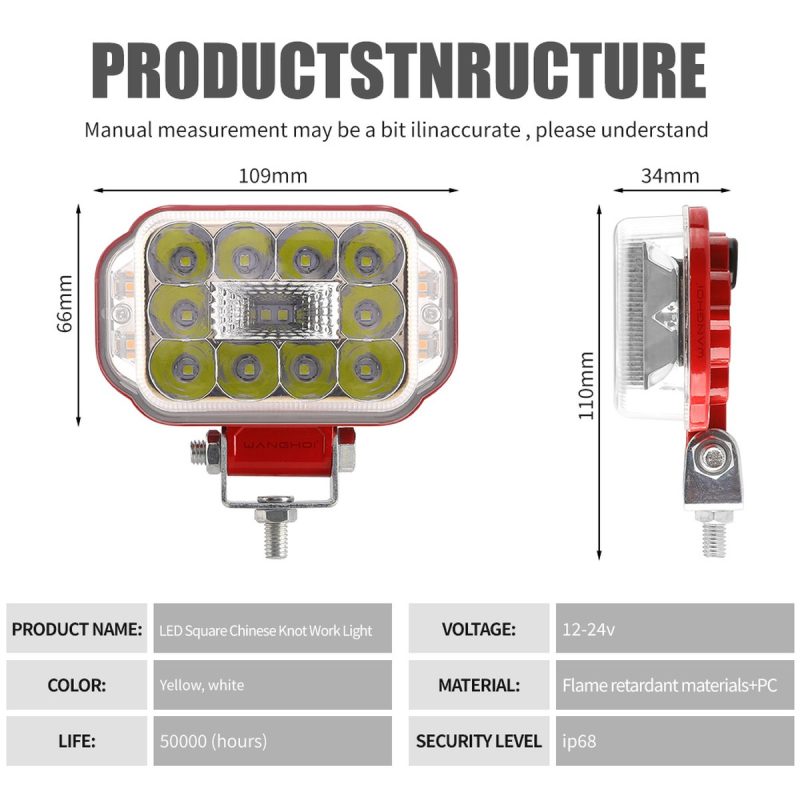

- Dimension references shown in the source graphic include 109mm width, 66mm body height, 34mm side depth, and 110mm height with bracket.
- Material reference is listed as flame-retardant material plus PC in the supplied product graphic.
- IP68 is listed in the source graphic; confirm waterproof test basis and final rating documents before production orders.
Quick Specs To Confirm
| Product type | Square Chinese knot LED work light |
|---|---|
| Size reference | 109mm width, 66mm body height, 34mm side depth, and 110mm height with bracket shown in source image |
| Voltage reference | 12-24V shown in supplied specification image |
| Light color reference | Yellow / white shown in supplied specification image |
| Material reference | Flame-retardant material plus PC shown in supplied specification image |
| Life reference | 50,000 hours shown in supplied specification image |
| Waterproof reference | IP68 listed in supplied specification image; confirm test basis for final quotation |
| Before quotation | Confirm exact model, light color, wiring, bracket/hardware, packing, quantity, sample weight, and destination-market compliance requirements. |
Ordering Information
For a wholesale quotation, send this product URL, target quantity, yellow or white lighting requirement, bracket or hardware notes, packing preference, and destination country. Related sourcing references: Wholesale LED Work Lights and Light Bars, Buyer Guides, and Get Wholesale Quote.
