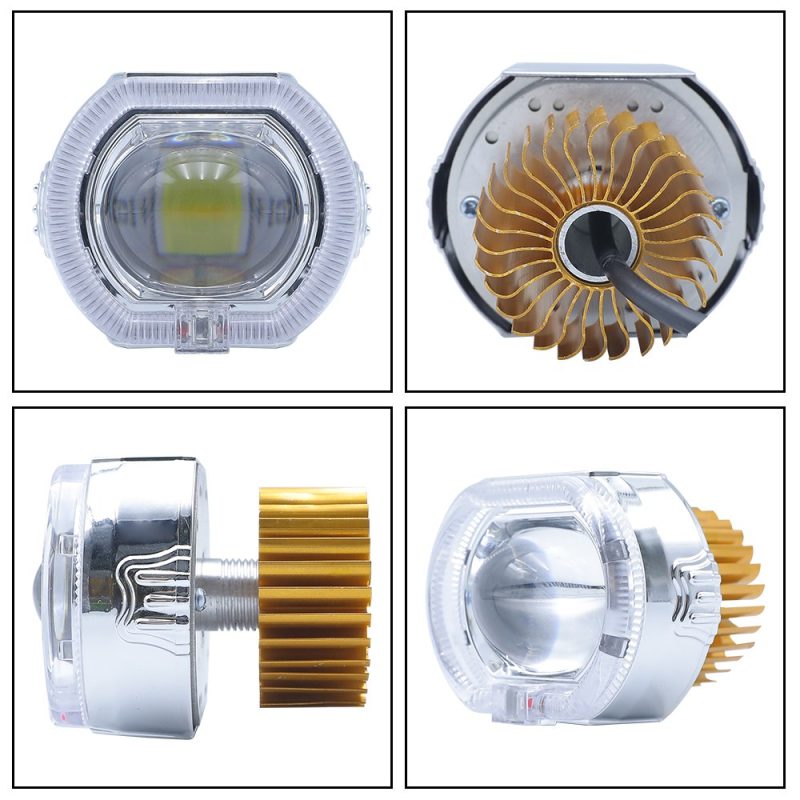

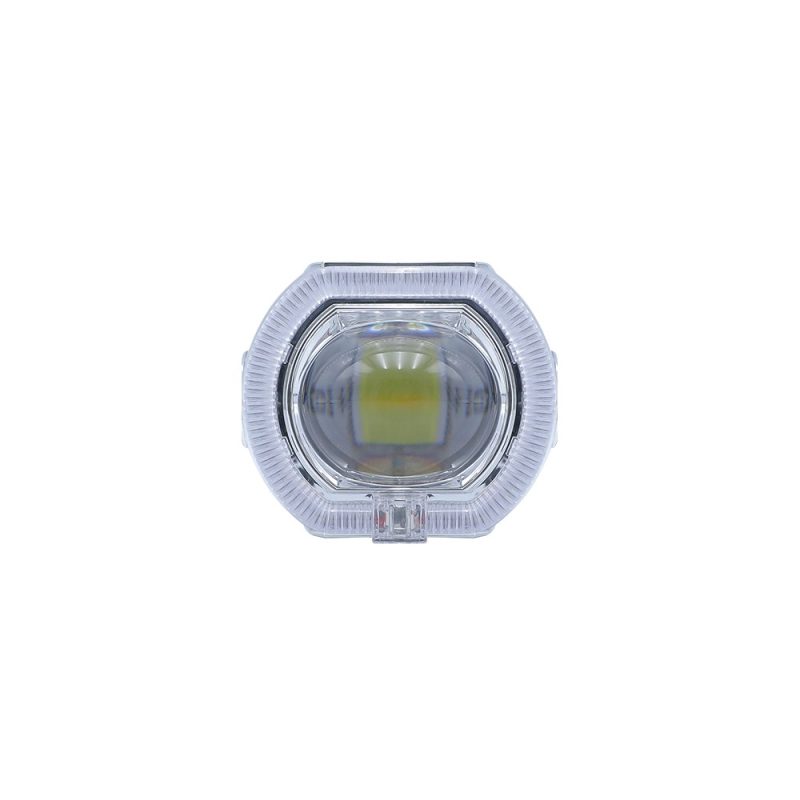

70mm Built-In Single-Bead Angel Devil Eye LED Headlight is a compact built-in LED headlight / projector direction for B2B motorcycle lighting retrofit, auxiliary headlight, and catalog sourcing programs. The selected gallery uses a cropped 1:1 product main image plus supplied source graphics for dimensions, lighting colors, heat-sink structure, waterproof wording, and multi-angle product reference.
This page is not a vehicle-brand-specific replacement part. Final sourcing should be confirmed by mounting position, wiring, voltage system, light color configuration, waterproof test basis, heat-sink version, packing, label artwork, destination-market rules, and sample test result before quotation.
Key Features
- Built-in single-bead angel / devil eye LED headlight format shown in the supplied product graphics.

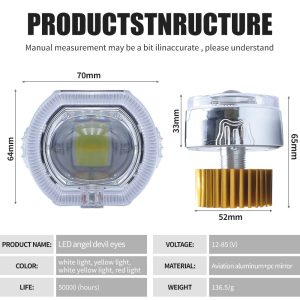

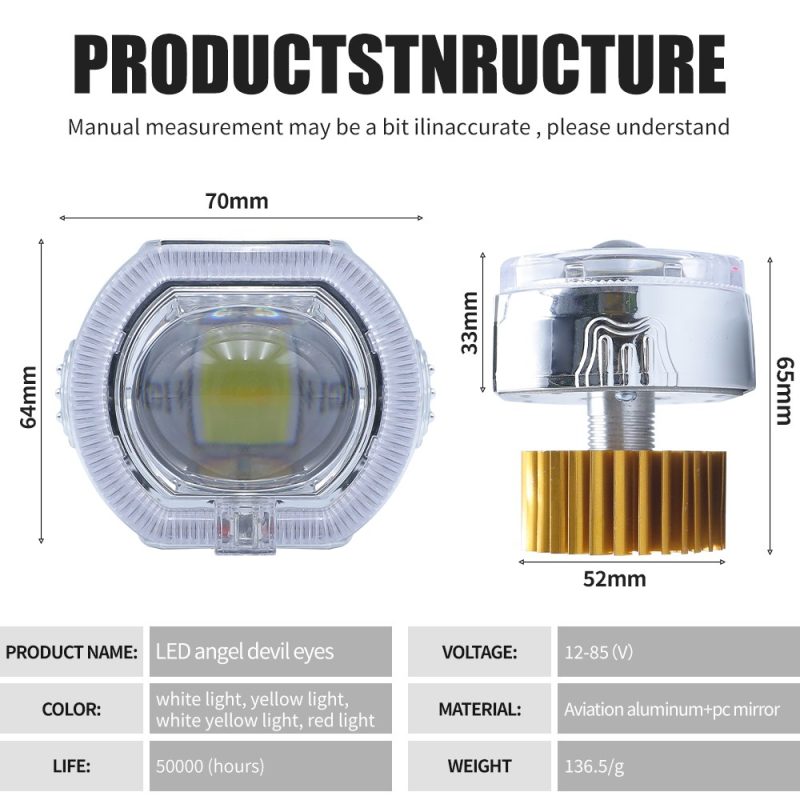

- Source structure graphic shows 70mm width, 64mm front height, 33mm body depth, 65mm overall side height, and 52mm heat-sink diameter reference.
- Source parameter graphic lists 12-85V voltage, aviation aluminum + PC mirror material wording, 136.5g weight reference, and 50000-hour life reference.

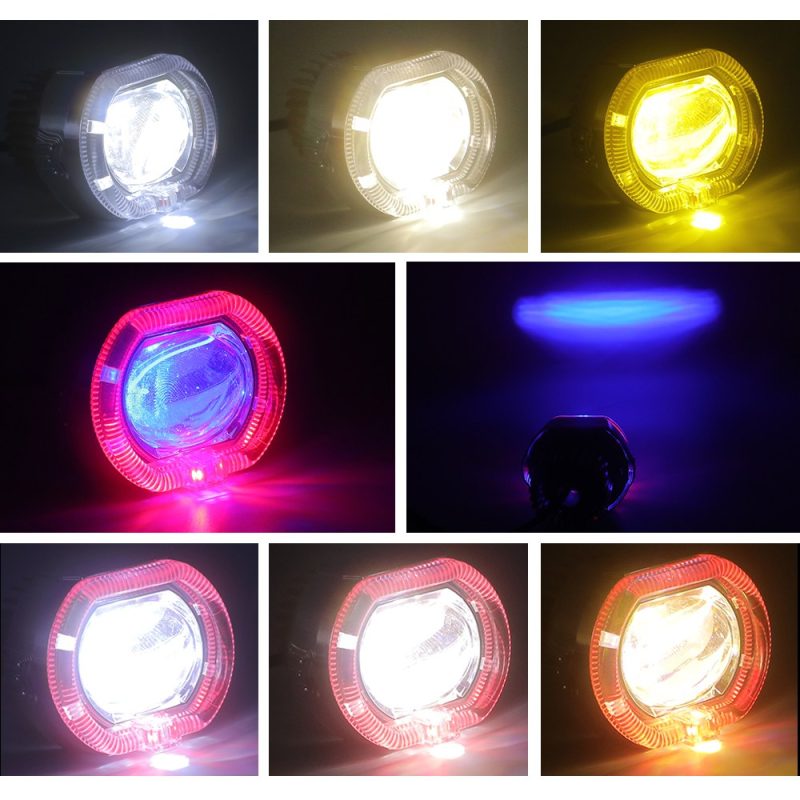

- Lighting source graphics show white, yellow, white-yellow, red, and blue/purple beam references.
- Source performance graphic lists 6000K color-temperature wording, 15000lm high/low-beam wording, and IP67 waterproof wording.

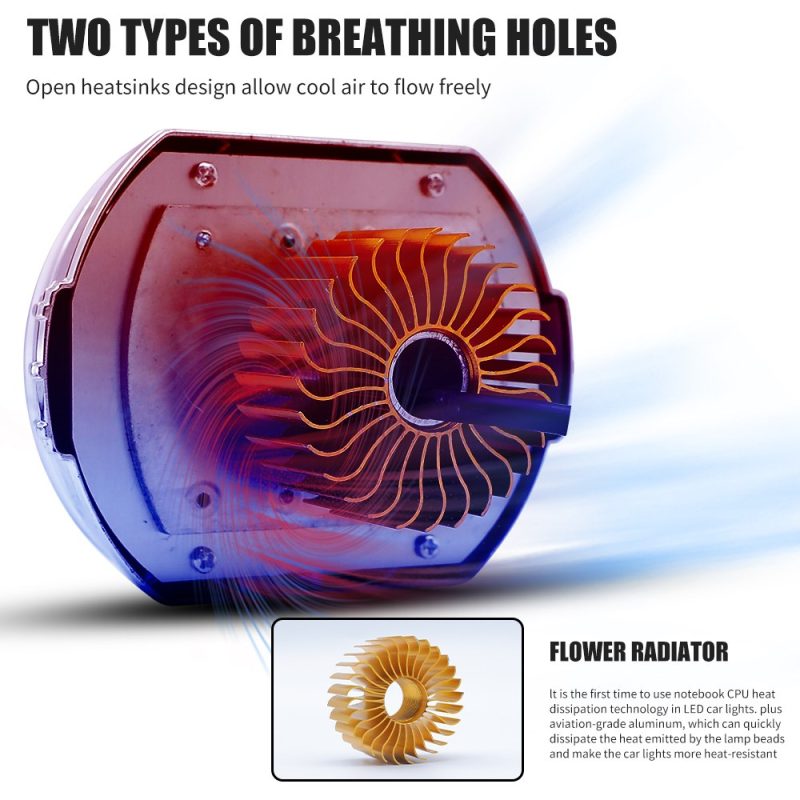

- Rear flower-radiator heat-sink structure is shown in the supplied source graphic.
Quick Specifications
| Product type | Built-in single-bead angel / devil eye LED headlight |
|---|---|
| Product name shown | LED angel devil eyes |
| Dimensions shown | 70mm width, 64mm front height, 33mm body depth, 65mm overall side height, and 52mm heat-sink diameter reference shown in supplied source graphic |
| Voltage reference | 12-85V shown in supplied parameter graphic |
| Color reference | White light, yellow light, white-yellow light, and red light listed in supplied parameter graphic; additional lighting-color images show blue/purple beam references. |
| Material reference | Aviation aluminum + PC mirror wording shown in supplied parameter graphic |
| Weight reference | 136.5g shown in supplied parameter graphic |
| Performance references | 6000K color-temperature wording and 15000lm high/low-beam wording shown in supplied source graphic; confirm test basis before production. |
| Waterproof reference | IP67 source wording shown in supplied graphics; confirm actual test basis before production. |
| Before quotation | Confirm light color configuration, wiring, mounting structure, voltage system, waterproof test basis, packing, label artwork, and destination market. |
Ordering Information
For quotation, send this product URL, target quantity, required light color configuration, wiring requirement, voltage system, packing preference, label artwork, and destination country. Related sourcing references: Motorcycle Auxiliary Lights, Buyer Guides, and Get Wholesale Quote.
