Product Details
Product Details

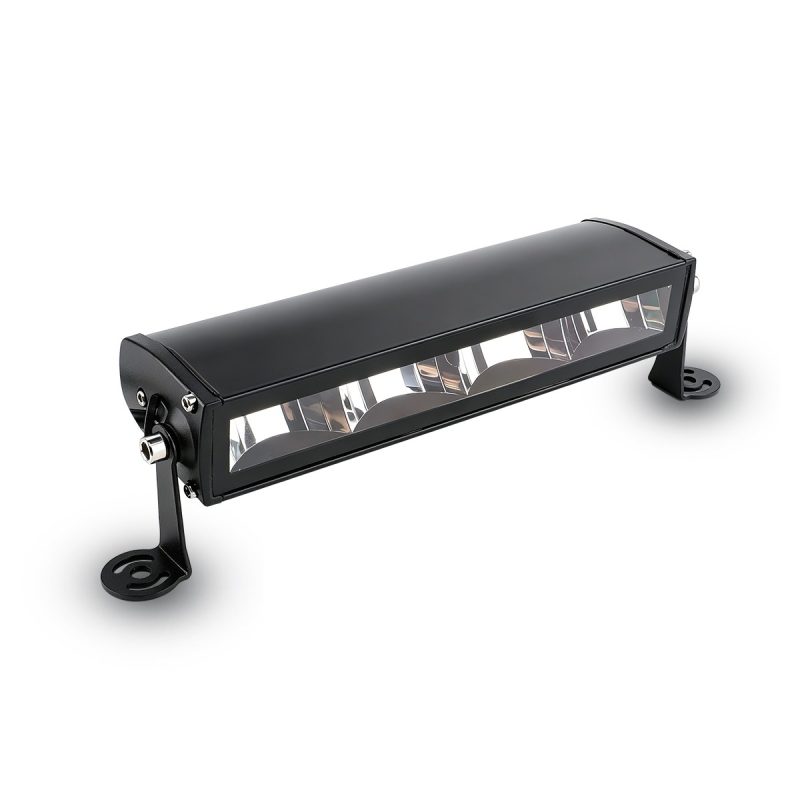

75W Single-Row 4-Lens LED Work Light Bar is a compact auxiliary LED work light bar with a four-lens single-row face, adjustable side brackets, and a slim black housing direction. The supplied English product material positions it for off-road, agricultural machine, electric vehicle, and exterior auxiliary lighting projects where locally permitted.
The gallery uses clean product-only views plus English detail and spec images from the source folder. Supplied scene graphics with recognizable third-party vehicle-brand styling were excluded from the product gallery. This page is written for wholesale sourcing and sample evaluation, not as a vehicle-brand-specific replacement part.
Key Features

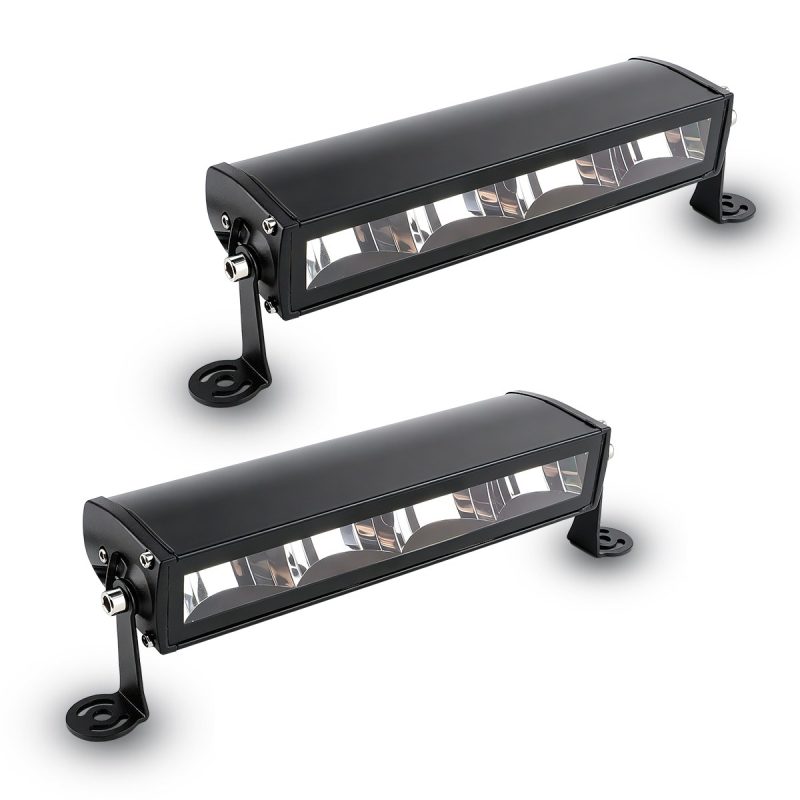

- Four-lens single-row light bar structure shown in the supplied product images.
- 75W power, 12-24V voltage, and IP67 source rating shown in the supplied English spec graphic; confirm test basis and final batch before quotation.

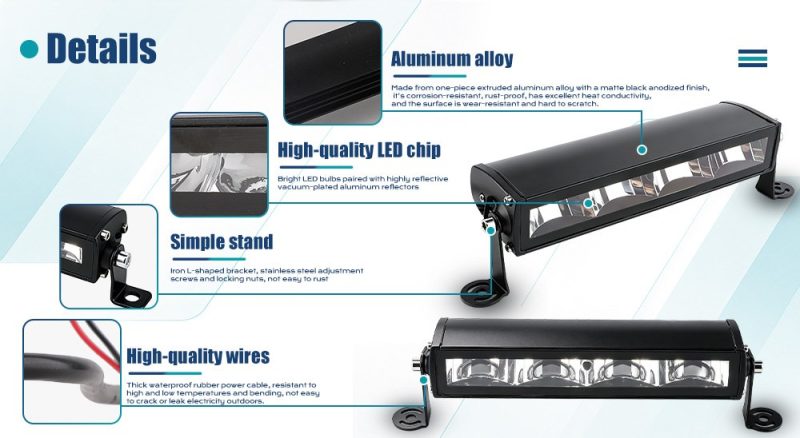

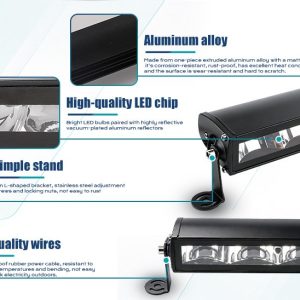

- Aluminum alloy + PC material reference with black housing and side-bracket mounting direction shown in the source images.

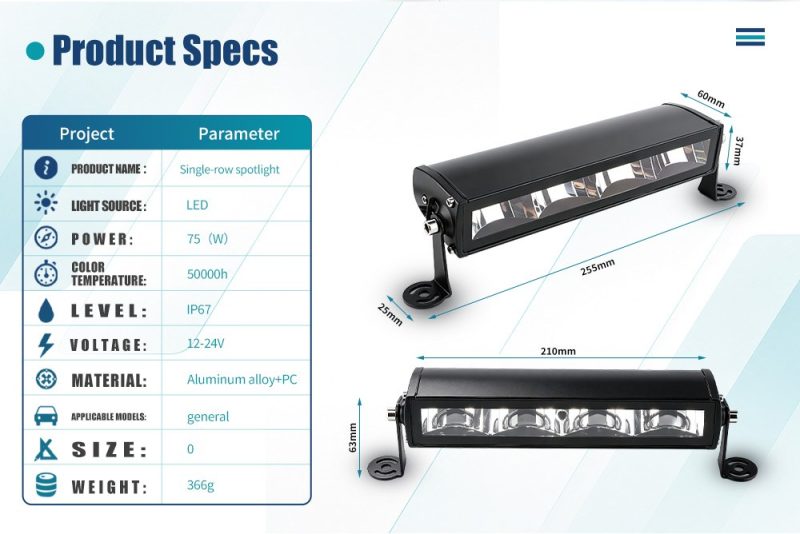

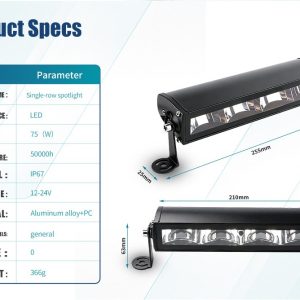

- 255 mm overall length reference, 60 mm depth reference, 37 mm housing height reference, and 366 g weight reference shown in the supplied spec graphic.

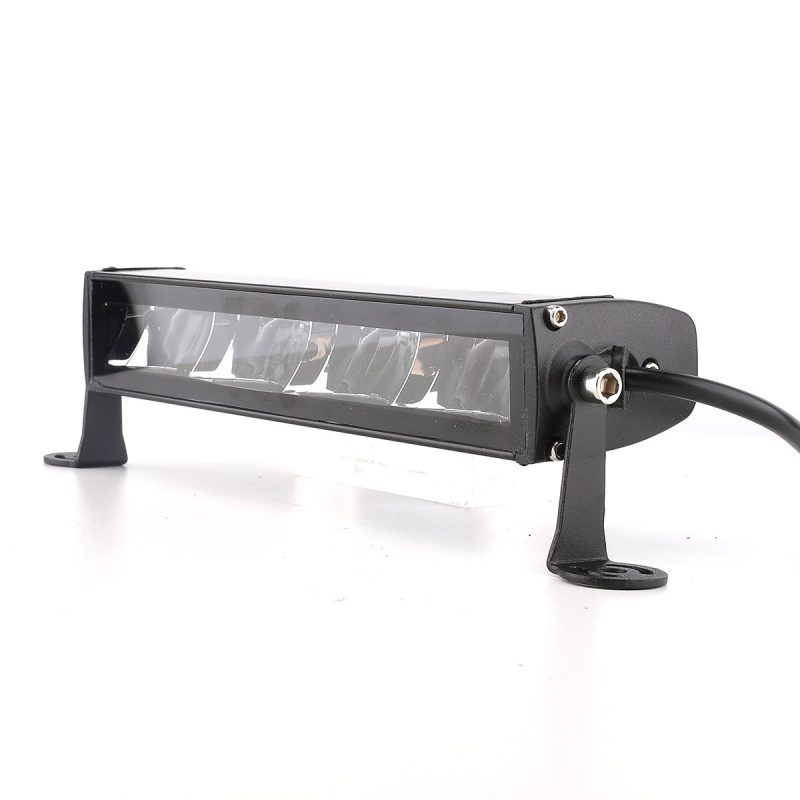

- L-shaped bracket direction with stainless adjustment screw and locking nut references shown in the supplied detail graphic.
Quick Specs To Confirm
| Product type | Single-row 4-lens LED work light bar |
|---|---|
| Power reference | 75W shown in supplied English source image |
| Voltage reference | 12-24V shown in supplied English source image |
| Protection reference | IP67 shown in supplied English source image; confirm test basis and final batch before quotation. |
| Material reference | Aluminum alloy + PC shown in supplied English source image |
| Dimension references | 255 mm overall length, 60 mm depth, 37 mm housing height, and 210 mm lower bracket-span reference shown in supplied English source image |
| Weight reference | 366 g shown in supplied English source image |
| Application reference | Off-road, agricultural machine, electric vehicle, and auxiliary exterior lighting projects where locally permitted |
| Before quotation | Confirm beam color, beam pattern, cable length, bracket kit, packing, carton quantity, logo/label requirement, and destination-market compliance needs. |
Ordering Information
For a wholesale quotation, send this product URL, required quantity, beam color requirement, wiring/bracket requirement, packing preference, and destination country. Related sourcing references: LED Work Lights, Buyer Guides, and Get Wholesale Quote.
