Product Details
Product Details
This i8-m25 i8-m30 led square 5d built-in projector headlight is prepared for B2B auxiliary lighting buyers who need clean product references before quotation. The selected gallery uses 2.5 inch and 3.0 inch dimension cards, front, side, rear, and multi-view while excluding vehicle scene, waterproof/IP, lifespan, and broad brightness claim graphics.
The selected gallery updates the old empty WooCommerce image set with a 1:1 main image and five product-gallery images from the supplied source plan. Motorcycle scenes and broad claim cards were excluded; selected gallery uses product-only, dimension, side, rear, and multi-view images.
This page is for B2B sourcing and quotation. It is not a vehicle-brand-specific replacement page and does not claim unsupported retail availability, certification, or universal regulatory approval.
Key Features
- Square 5D built-in projector headlight with angel-eye outer light guide is shown in the selected source images.
- Source graphics show i8-M25 2.5 inch and i8-M30 3.0 inch model references.
- Source specification graphic lists 50 W, 9-60 V, and aluminum alloy + ABS material.

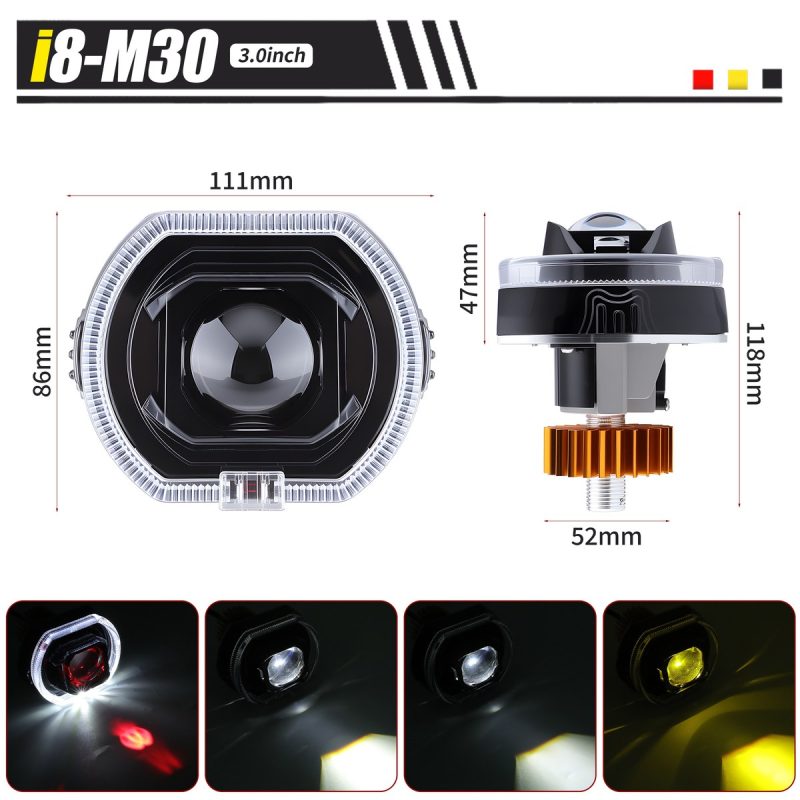

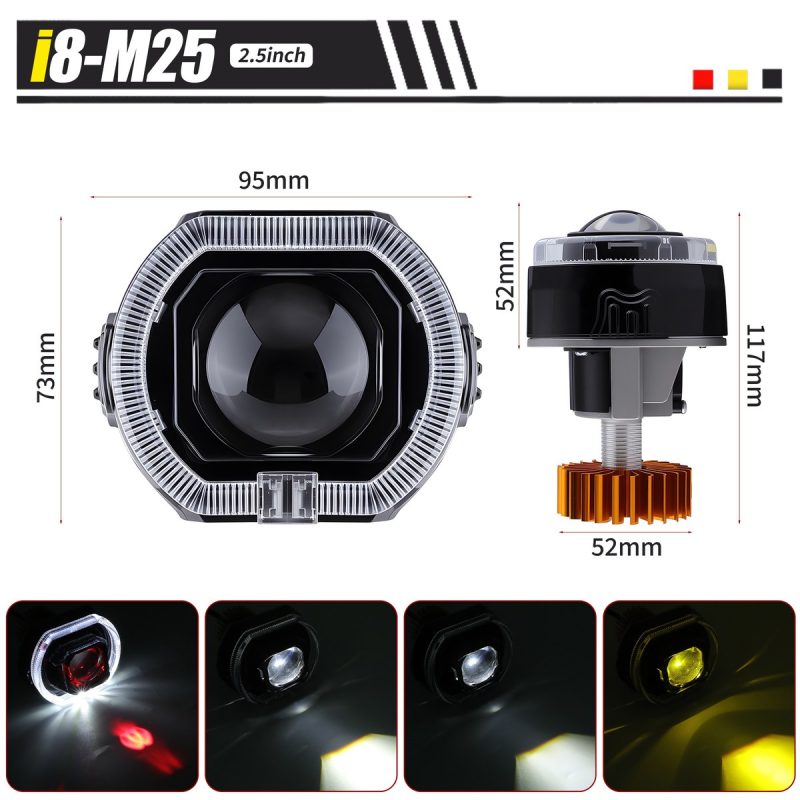

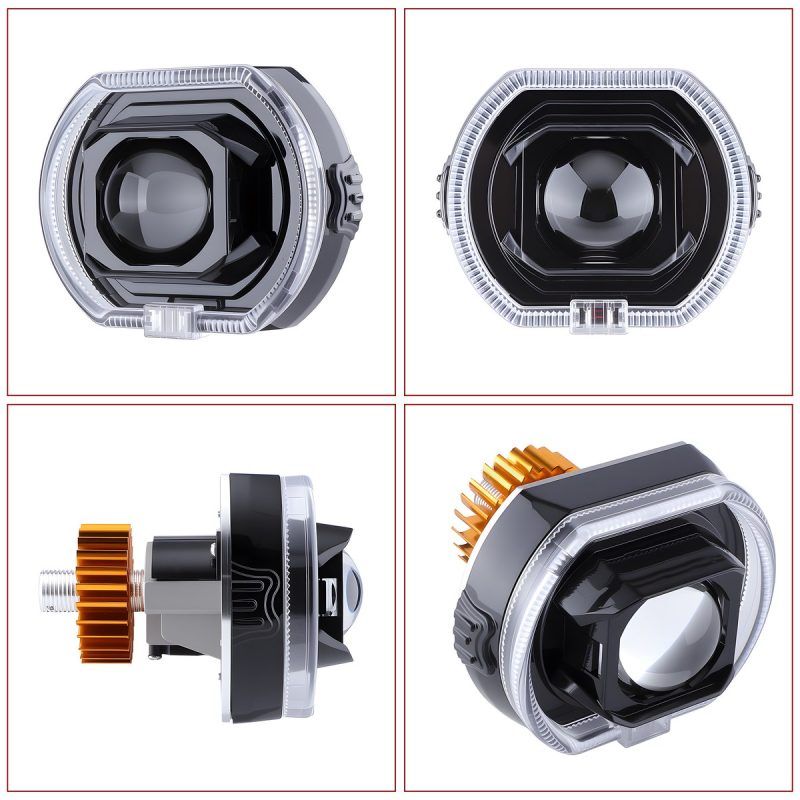

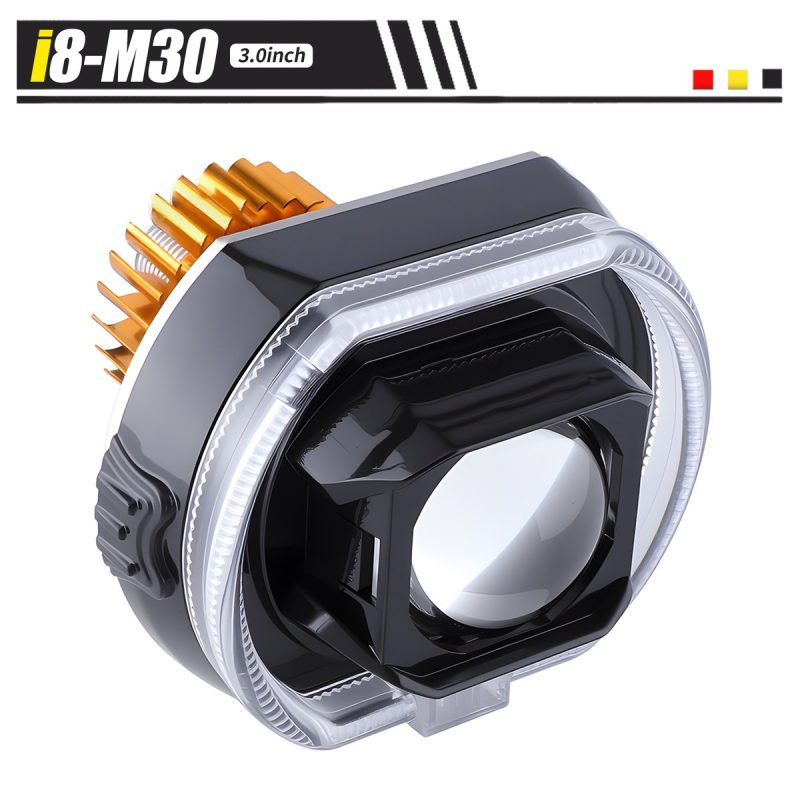

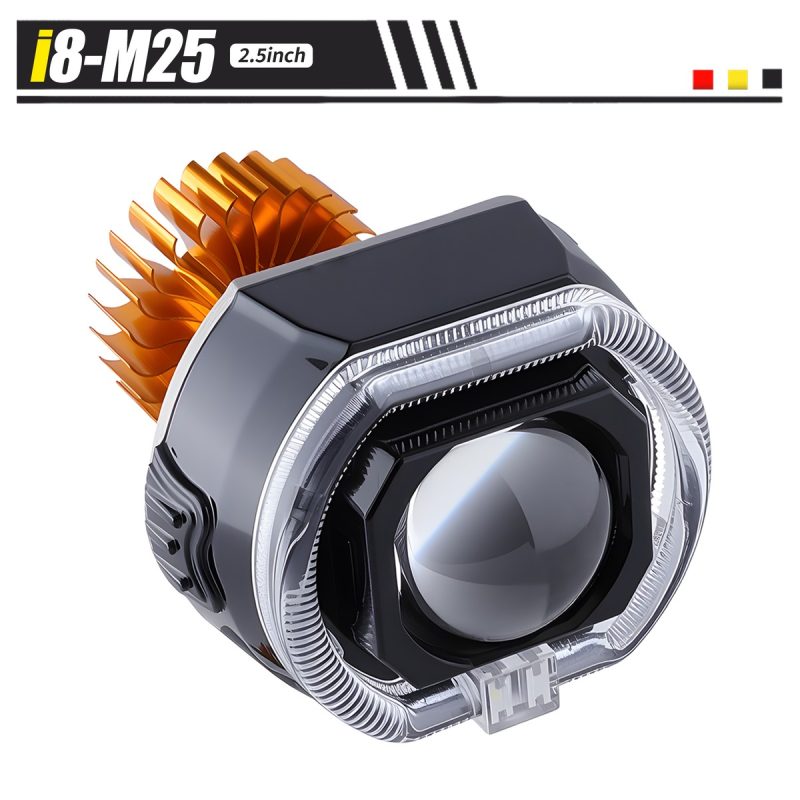

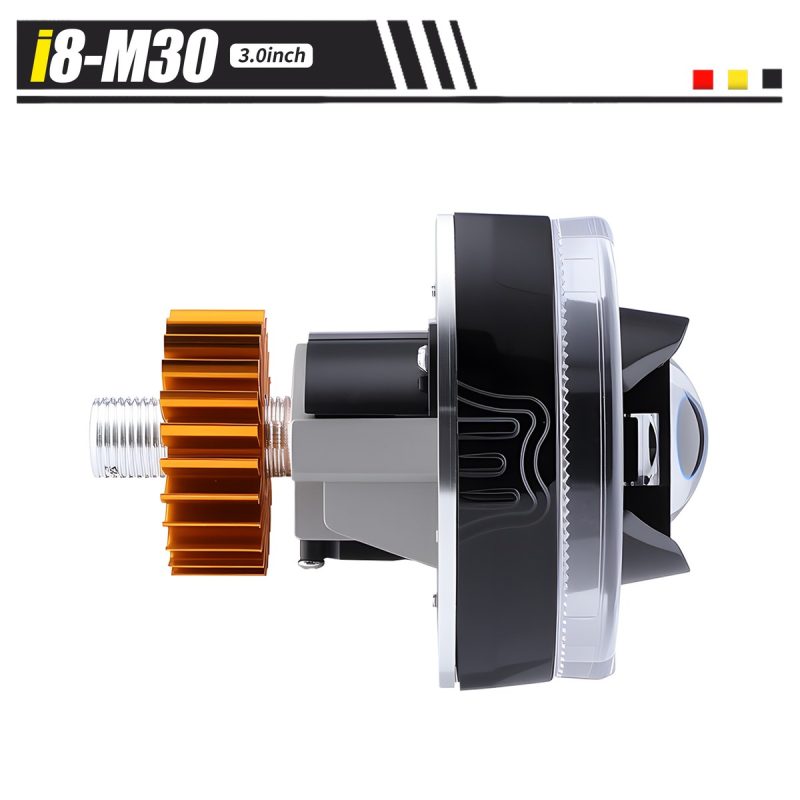

- 2.5 inch and 3.0 inch dimension cards, front, side, rear, and multi-view references are included for buyer audit.
- Suitable for motorcycle headlight retrofit and auxiliary front lighting projects where compatible after mounting and wiring confirmation.
- Prepared with one main image and five WooCommerce gallery images for product-page completeness.
Quick Specifications
| Product type | i8-M25 / i8-M30 LED square 5D built-in projector headlight |
|---|---|
| Body style | Square 5D built-in projector headlight with angel-eye outer light guide |
| Model / size references | i8-M25 2.5 inch and i8-M30 3.0 inch references shown |
| Product name shown | LED Square 5D Integrated Decorative Cover |
| Power shown | 50 W |
| Voltage shown | 9-60 V |
| Material shown | Aluminum alloy + ABS |
| Dimension reference | 118 x 47 x 86 mm source graphic shown |
| Protection note | Source graphic shows IP67; confirm test documentation before quotation |
| Image references | 2.5 inch and 3.0 inch dimension cards, front, side, rear, and multi-view |
| Application | motorcycle headlight retrofit and auxiliary front lighting projects where compatible |
| Spec note | Voltage, power, lumen, beam pattern, waterproof rating, packing size, and certification availability should be confirmed by exact model before quotation |
| Confirm before quotation | Required i8-M25 or i8-M30 size; Beam and color function; Mounting/wiring requirement; Quantity and packing |
Ordering Information
For wholesale quotation, send this product URL, target quantity, destination country, socket or color requirement, packing request, and any private-label requirement. Related category: Motorcycle Auxiliary Lights. Request details through Get Wholesale Quote.
