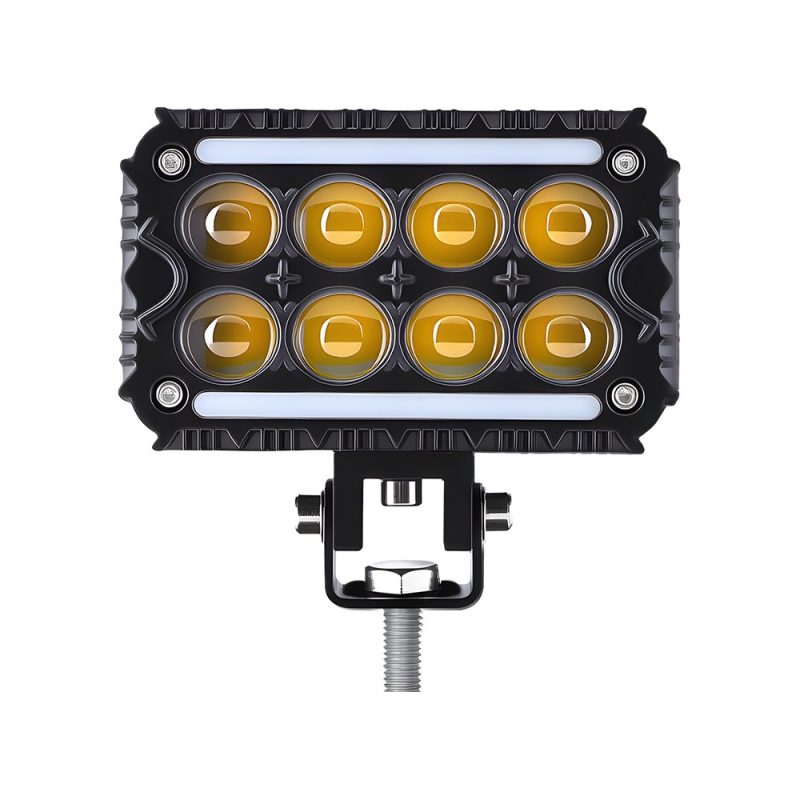

WHV103 Double-Row Colorful LED Work Light 12V-24V is a compact auxiliary LED work light for motorcycle lighting programs, off-road accessory sourcing, and B2B catalog buyers. The selected gallery uses product-only front, angled, side, rear, wiring, dimensional, and weight reference images from the supplied WHV103 folder.
The source material has inconsistent bead-count wording, so this page identifies the item by WHV103 and double-row colorful work-light direction instead of overstating a bead count. Final sourcing should be confirmed by sample test, wire definition, color sequence, mounting hardware, waterproof test basis, packing, and destination-market rules before quotation.
Key Features

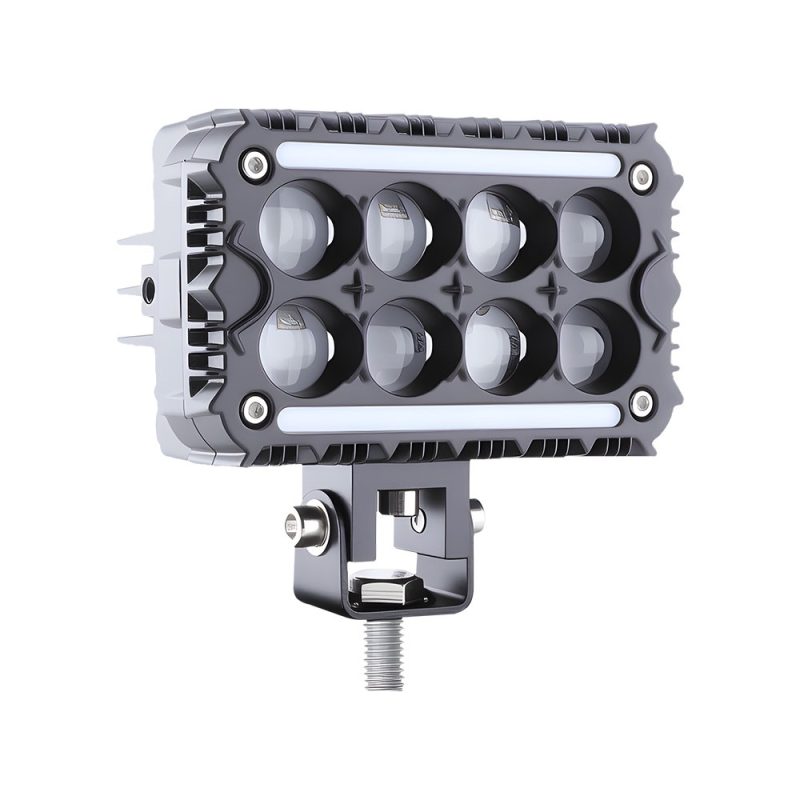

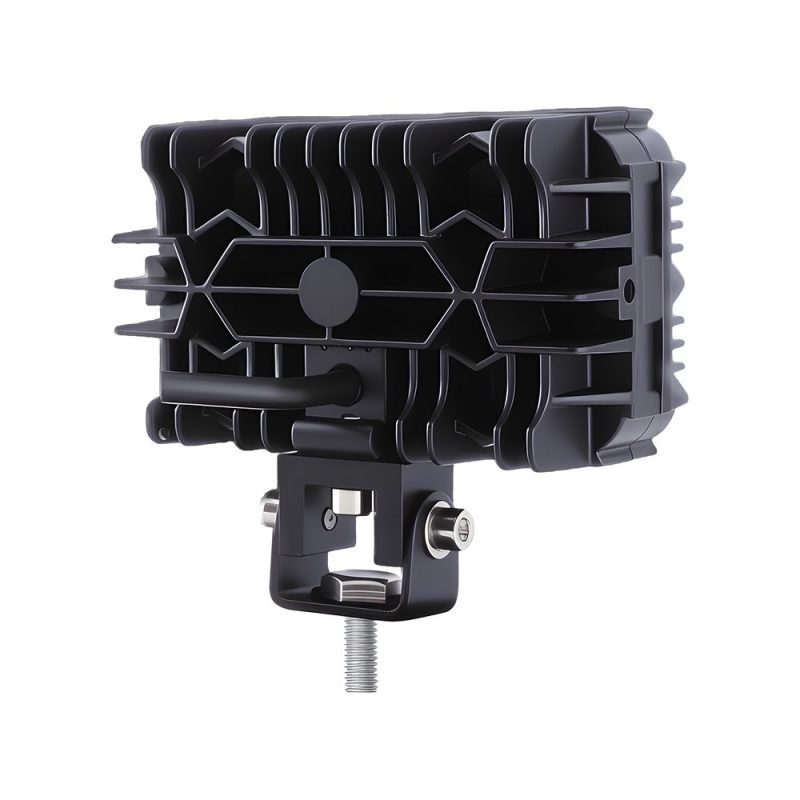

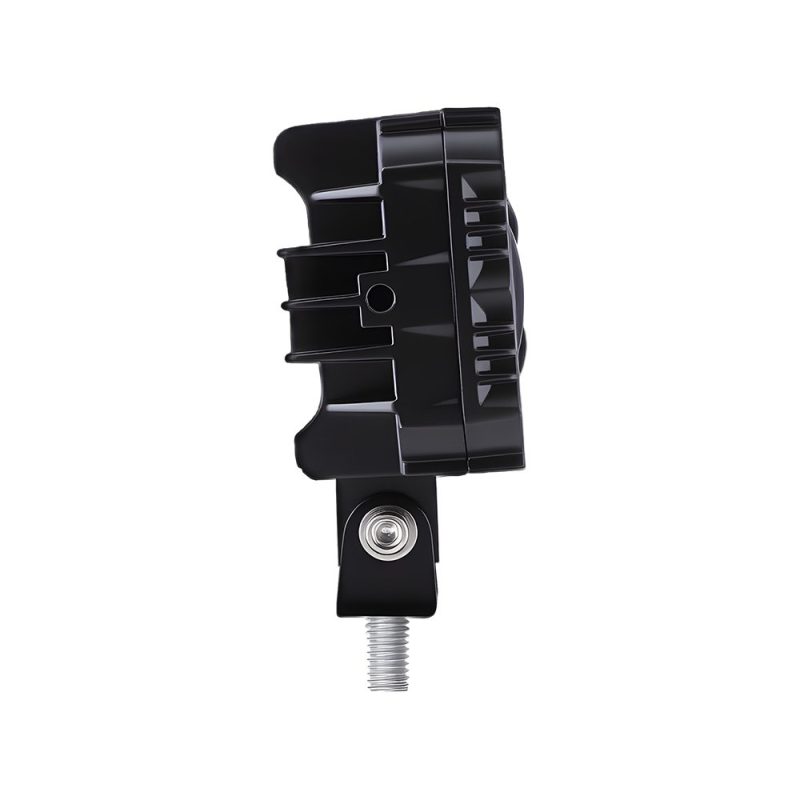

- Double-row compact LED work light format with bracket and rear heat-sink housing shown in product-only images.

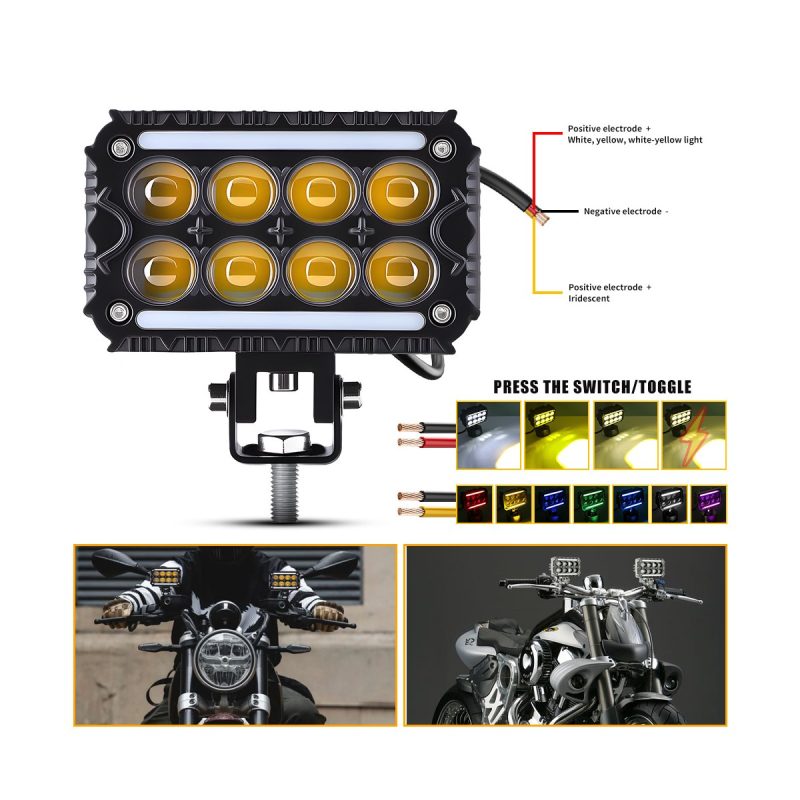

- Source wiring graphic shows red positive wire for white, yellow, and white-yellow lighting, black negative wire, and yellow positive wire for iridescent lighting.
- Source graphics show white, yellow, white-yellow, red, blue, green, ice blue, and purple color references.
- Source specification graphic shows 12-24V voltage, aluminum alloy + PC material, IP68 source wording, and 50,000-hour life reference.
- Suitable for distributors and motorcycle auxiliary lighting programs requiring compact multi-color work-light options.
Quick Specifications
| Product type | Compact double-row colorful LED work light / motorcycle auxiliary spotlight |
|---|---|
| Model reference | WHV103 folder reference |
| Voltage reference | 12-24V shown in supplied source specification graphic |
| Material reference | Aluminum alloy + PC shown in supplied source specification graphic |
| Color references | White, yellow, white-yellow, red, blue, green, ice blue, and purple references shown in supplied source graphics |
| Wire reference | Red positive for white/yellow/white-yellow lighting, black negative, and yellow positive for iridescent lighting shown in supplied source graphic |

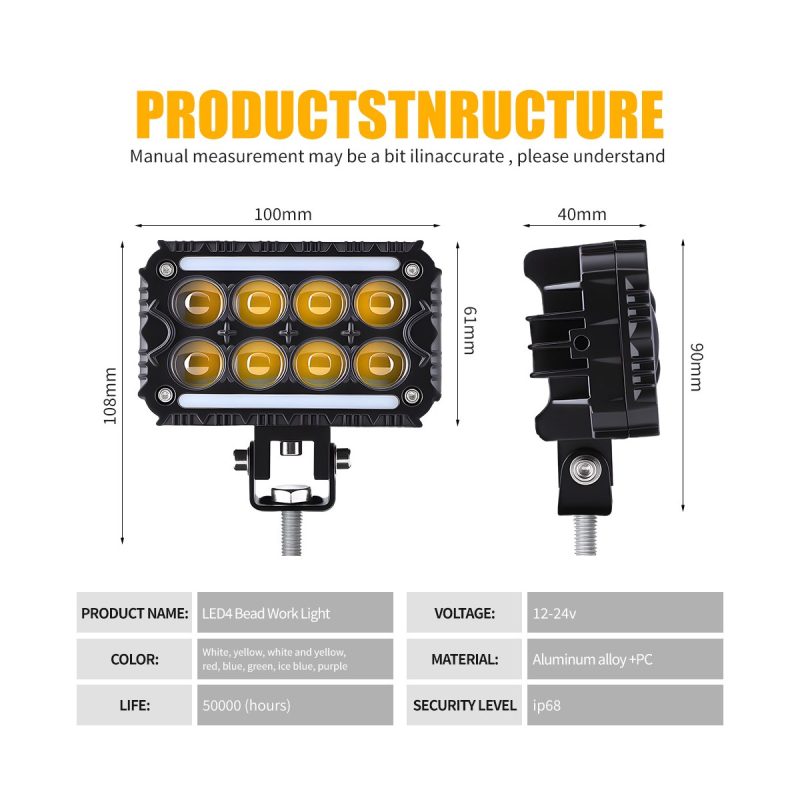

| Dimension references | 100mm front width, 61mm lamp-body front height, 40mm depth, 90mm side overall height, and 108mm front overall height reference shown in supplied dimensional graphic |
| Waterproof reference | IP68 source wording shown in supplied specification graphic; confirm actual test basis before production. |
| Life reference | 50,000-hour source wording shown in supplied specification graphic; confirm test condition before production. |
| Before quotation | Confirm wire definition, color sequence, light mode logic, bracket hardware, waterproof test basis, packing, label artwork, and destination market. |
Ordering Information
For quotation, send this product URL, target quantity, color and light-mode requirement, wiring requirement, bracket and mounting details, packing preference, label artwork, and destination country. Related sourcing references: Motorcycle Auxiliary Lights, Buyer Guides, and Get Wholesale Quote.
