Product Details

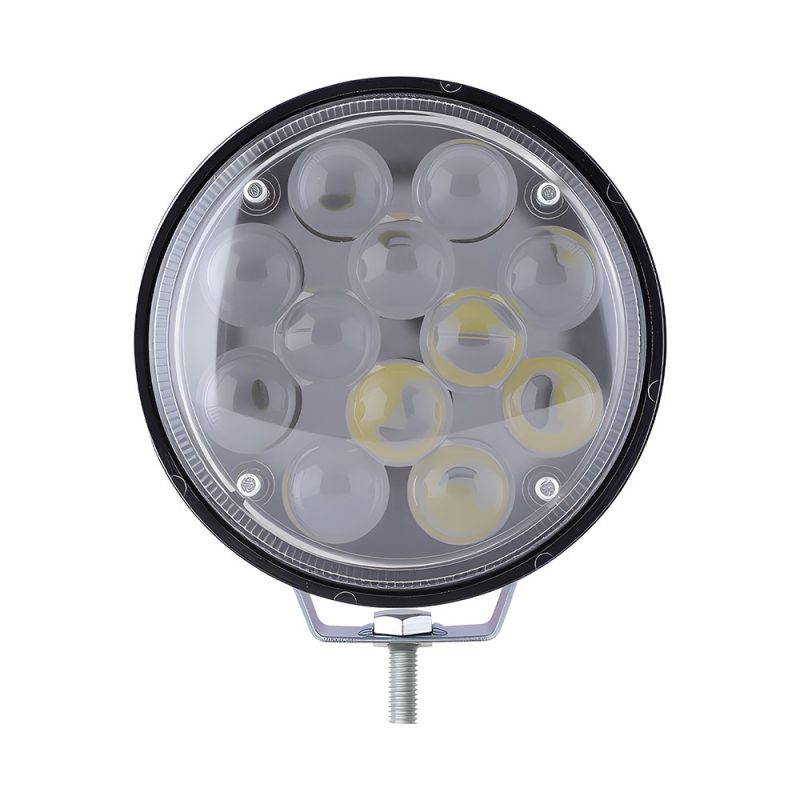

WH5034C 5 Inch Round LED Headlight
WH5034C 5 Inch Round LED Headlight 12V-80V IP67 is a round 5-inch LED headlight and vehicle spotlight design for B2B automotive lighting catalog programs. The selected upload set uses product-only views and the source specification image while excluding vehicle scene graphics.

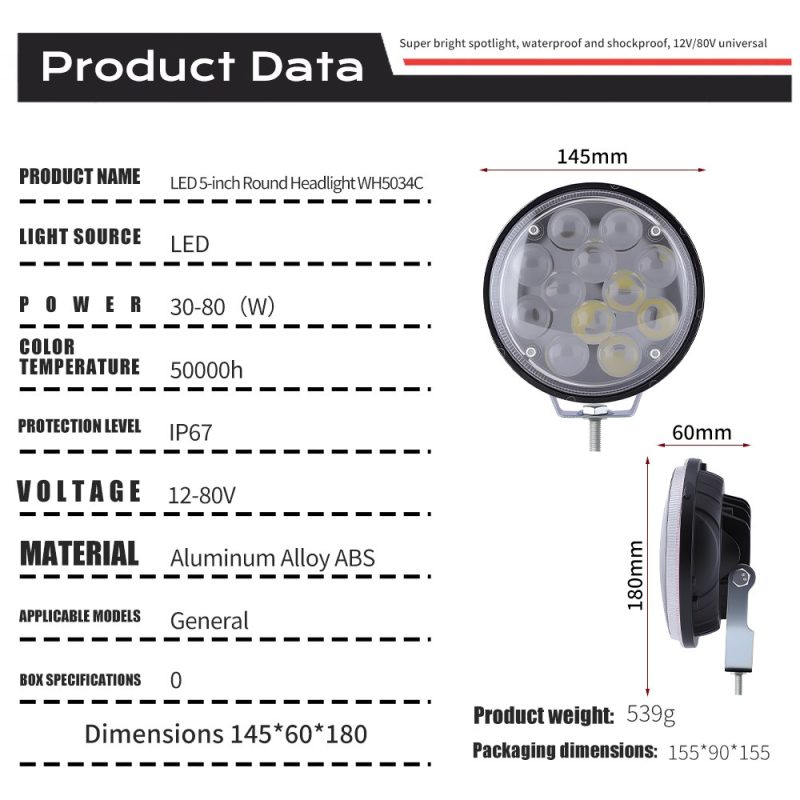

Supplied source graphics identify the model as LED 5-inch Round Headlight WH5034C and show LED light source, 30-80W power reference, 12-80V voltage, IP67 wording, aluminum alloy ABS material wording, 145mm face reference, 60mm depth reference, 180mm total height reference, 539g product weight, and 155 x 90 x 155mm packaging dimension reference. Final beam pattern, wiring, bracket, and compliance documents should be checked by sample before quotation.
Key Features
- 5-inch round LED headlight / vehicle spotlight with bracket mount and rear heat-sink housing.
- Source specification graphic shows 30-80W power reference and 12-80V voltage.

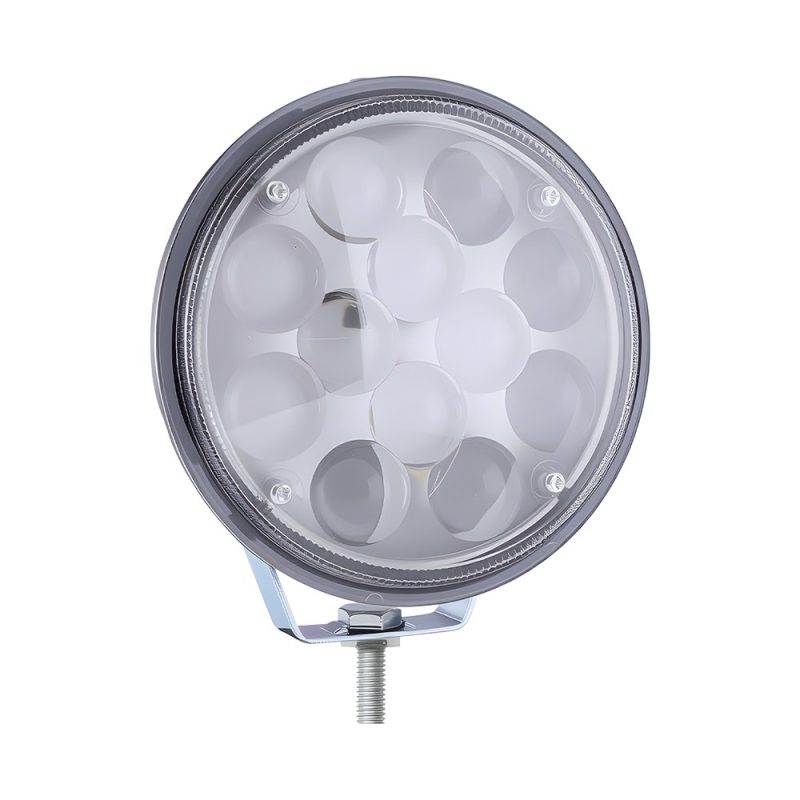

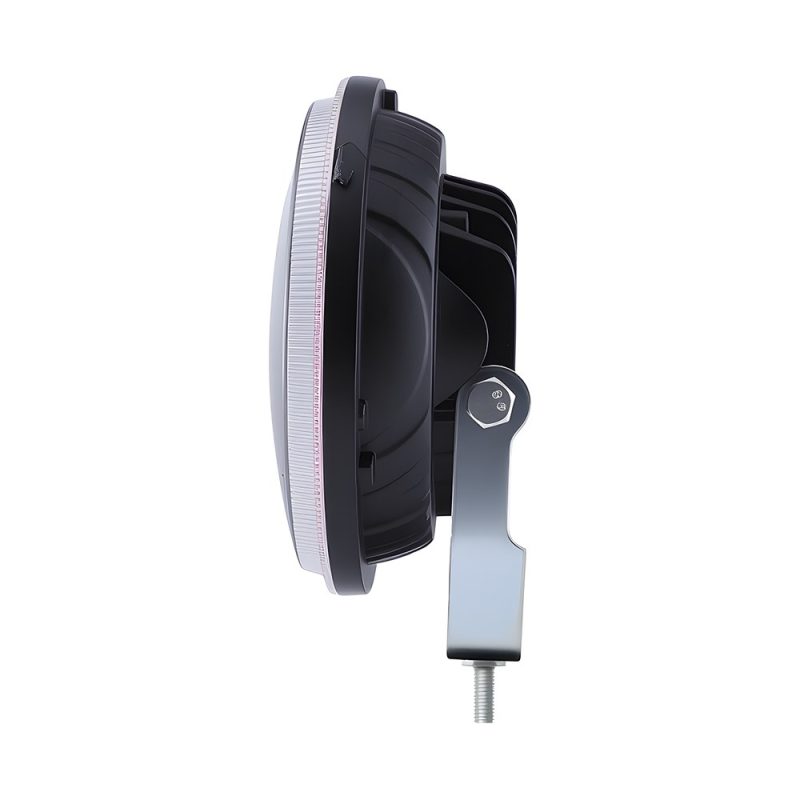

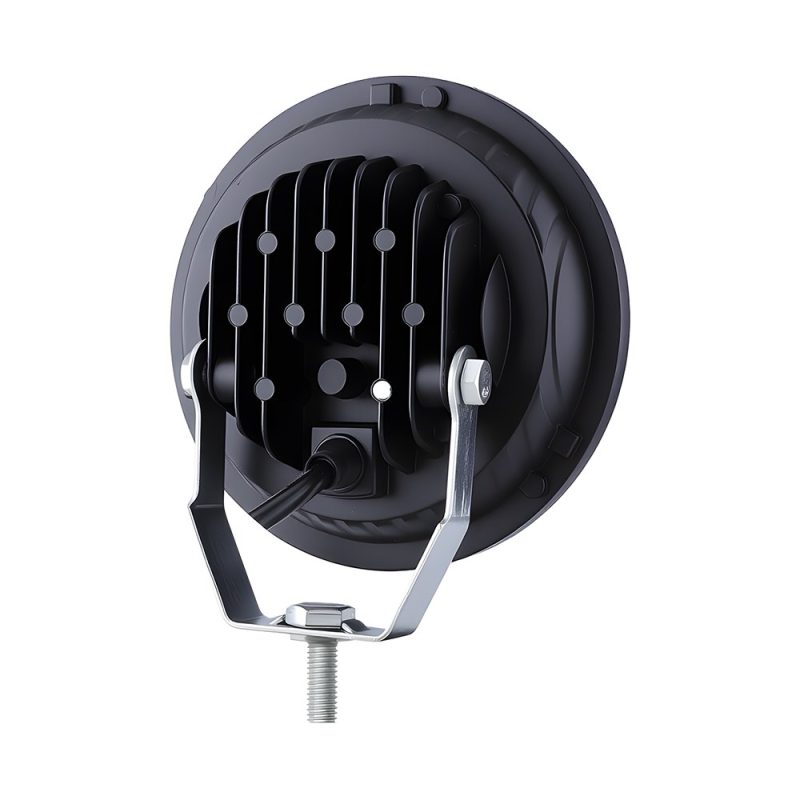

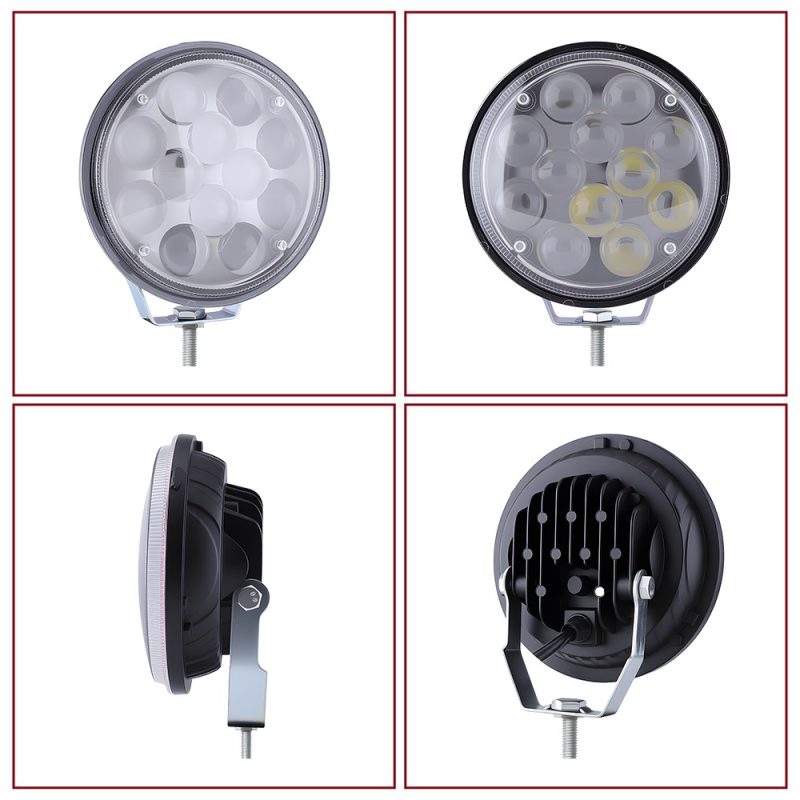

- Product-only images show front, side, rear housing, and multi-view references for B2B buyer checking.
- Source specification graphic shows IP67 wording and aluminum alloy ABS material wording.
- Suitable for wholesale headlight catalogs where beam pattern, wiring, bracket, packing, and market documents are confirmed before order.
Confirmed Source Details
| Model Reference | WH5034C shown in supplied source specification graphic |
|---|---|
| Product Type | 5-inch round LED headlight / vehicle spotlight |
| Light Source | LED shown in supplied source specification graphic |
| Power Reference | 30-80W shown in supplied source specification graphic |
| Voltage Reference | 12-80V shown in supplied source specification graphic |
| Protection Reference | IP67 source wording shown in supplied specification graphic; confirm test basis before production |
| Material Reference | Aluminum alloy ABS source wording shown in supplied specification graphic |
| Dimension References | 145mm face, 60mm depth, and 180mm total height shown in supplied source graphic |
| Weight Reference | 539g product weight shown in supplied source graphic |
| Packaging Reference | 155 x 90 x 155mm packaging dimension shown in supplied source graphic |
| Confirm Before Quotation | Beam pattern, wiring, bracket hardware, pair/single packing, label artwork, compliance documents, and destination-market requirements |
For wholesale sourcing, send this product URL, target quantity, voltage requirement, beam requirement, bracket or mounting notes, packaging preference, and destination country. Wanghoi can confirm current batch details before sample or bulk order planning.
