WH5035C 5 Inch Round LED Headlight
WH5035C 5 Inch Round LED Headlight 12V-80V is a 5 inch round LED headlight direction for B2B vehicle lighting catalog programs. The selected upload set avoids vehicle scene graphics and uses product-only front, alternate front, side, rear, multi-view, and source specification images from the supplied folder.
The folder name references WH5031C, but the supplied source specification image identifies the model as LED 5-inch Round Headlight WH5035C. Source graphics show LED light source, 30-80W power reference, 12-80V voltage, aluminum alloy ABS material wording, 145mm face reference, 60mm depth reference, 180mm total height reference, 470.5g product weight, and 155 x 90 x 155mm packaging dimension reference. Waterproof rating should be confirmed before quotation because source graphics use more than one rating reference.
Key Features
- 5 inch round LED headlight layout with multi-lens upper section and rectangular lower LED section.
- Source specification graphic lists WH5035C model wording, 12-80V voltage, and 30-80W power reference.

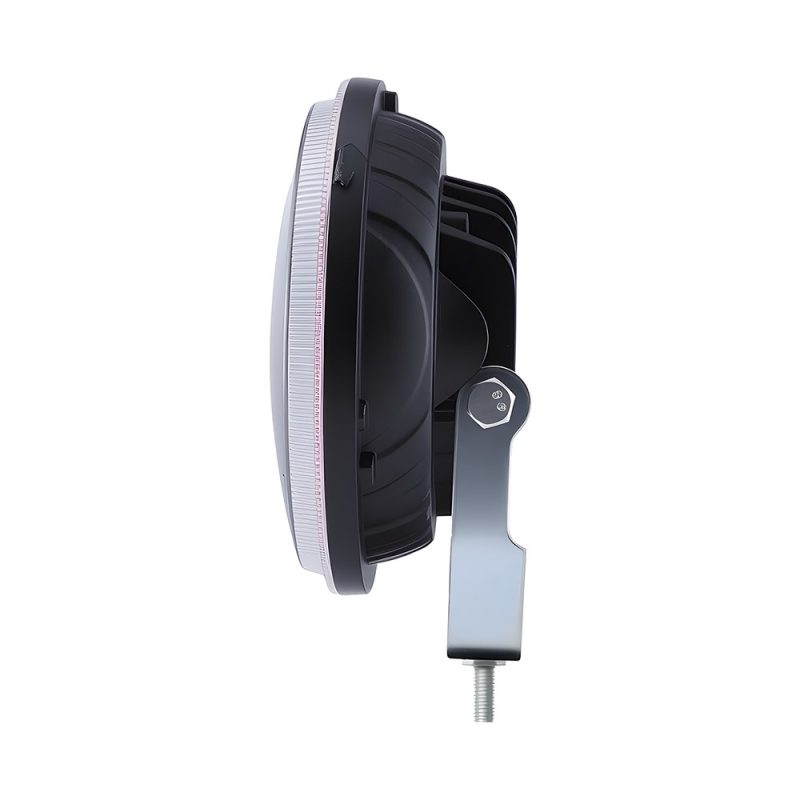

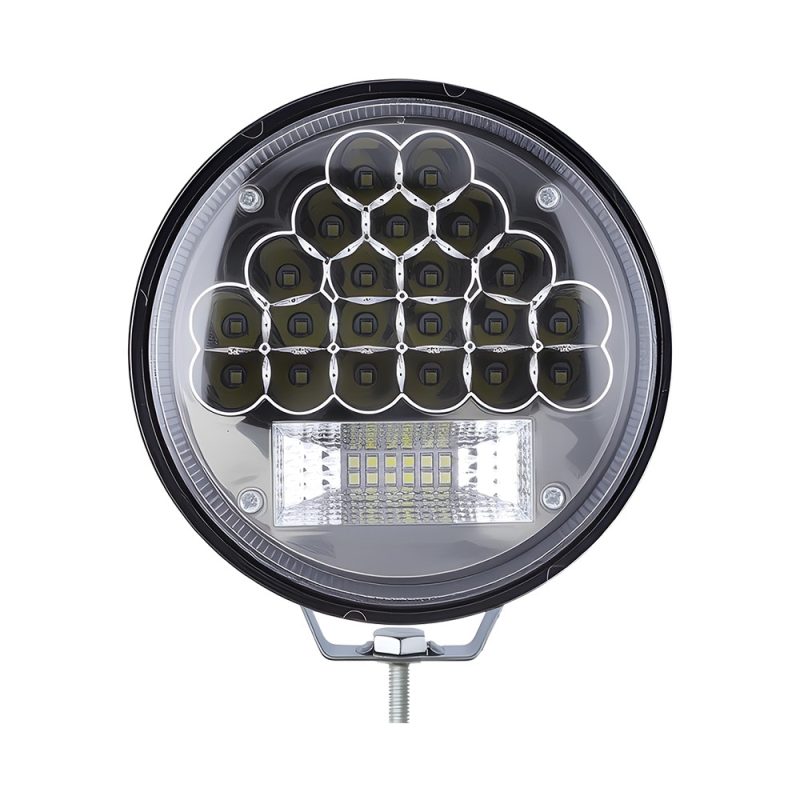

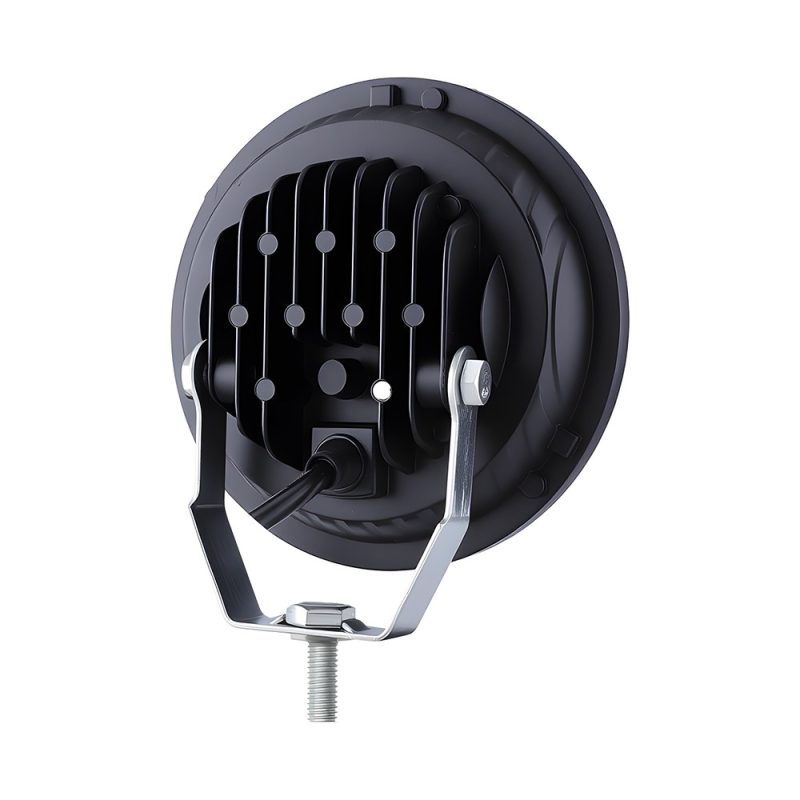

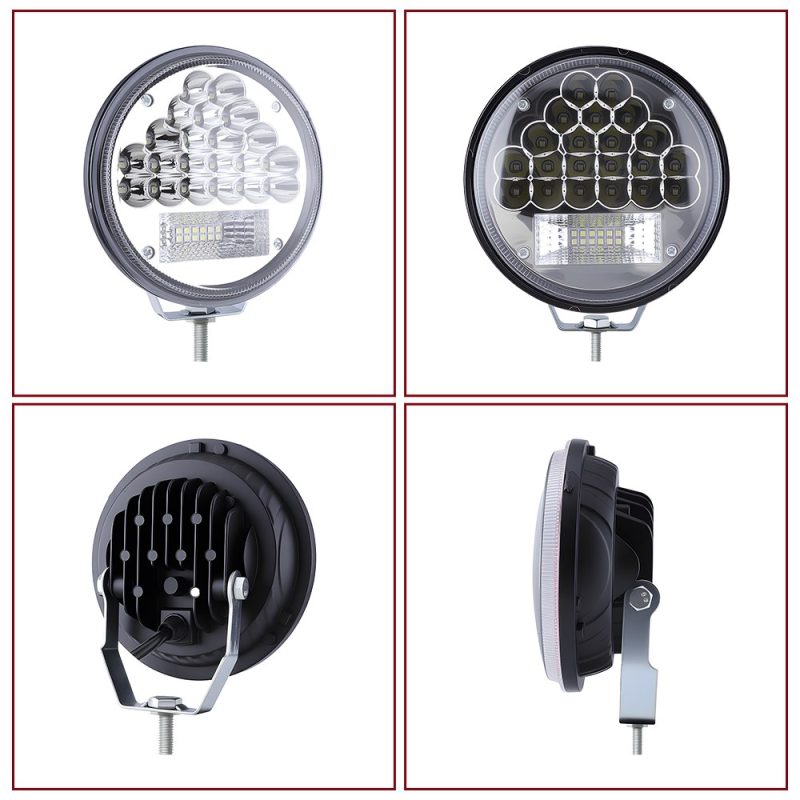

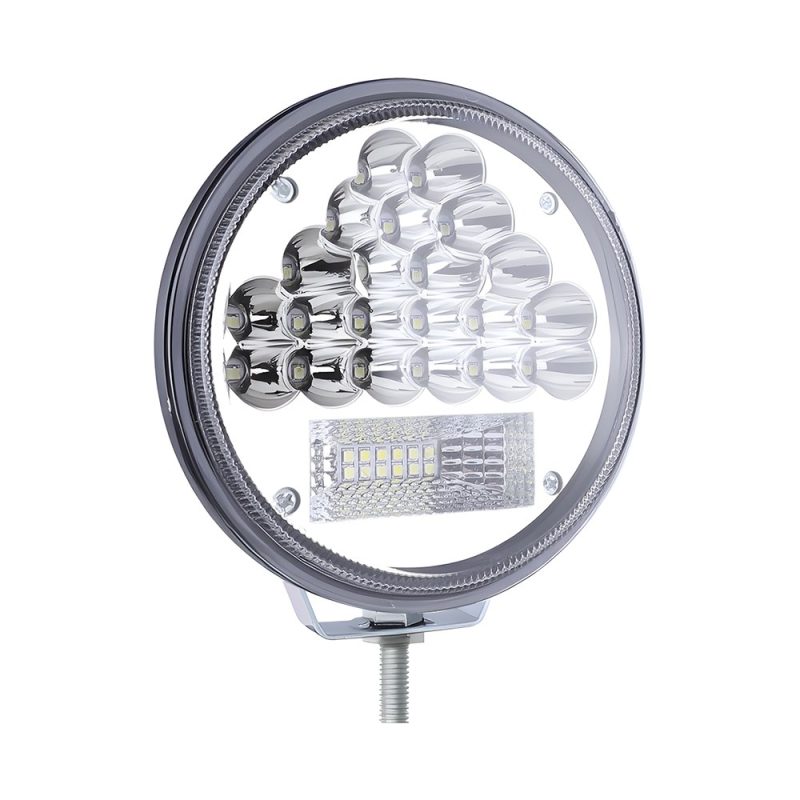

- Product-only images show clear front, darker front, side profile, rear heat-sink housing, bracket, and threaded mount.

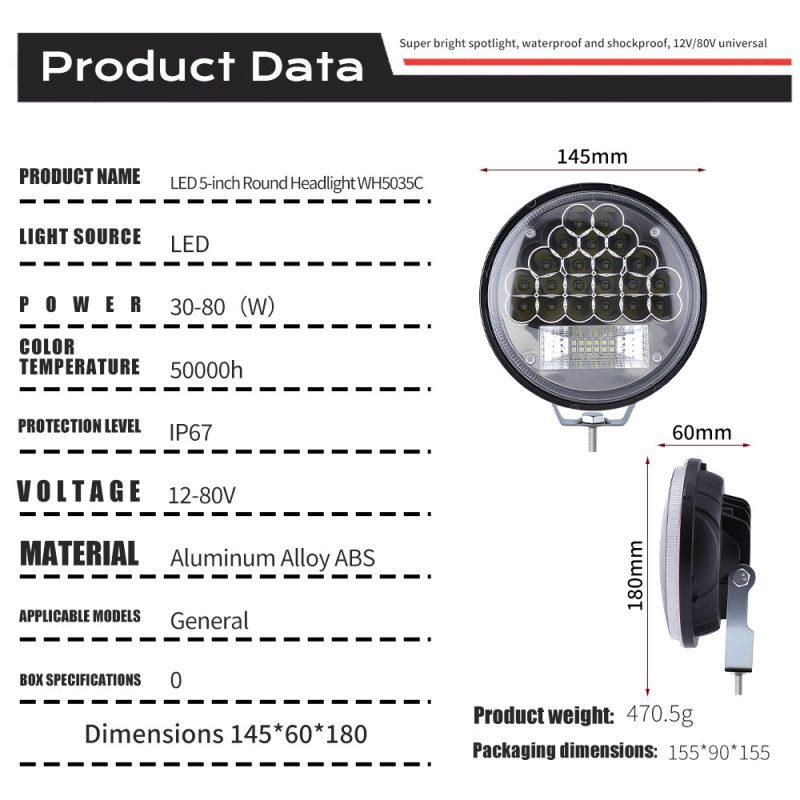

- Source specification graphic shows 145mm face, 60mm depth, 180mm total height, 470.5g weight, and 155 x 90 x 155mm packaging reference.
- Suitable for B2B vehicle lighting catalogs where beam pattern, wiring, waterproof rating, bracket, and packing are confirmed before order.
Confirmed Source Details
| Model Reference | WH5035C shown in supplied source specification graphic |
|---|---|
| Product Type | 5 inch round LED headlight / vehicle spotlight |
| Voltage Reference | 12-80V shown in supplied source specification graphic |
| Power Reference | 30-80W shown in supplied source specification graphic |
| Material Reference | Aluminum alloy ABS wording shown in supplied source specification graphic |
| Dimension References | 145mm face, 60mm depth, and 180mm total height shown in supplied source graphic |
| Weight Reference | 470.5g shown in supplied source specification graphic |
| Packaging Reference | 155 x 90 x 155mm shown in supplied source specification graphic |
| Confirm Before Quotation | Waterproof rating, beam pattern, wiring, bracket hardware, pair/single packing, carton quantity, label artwork, and destination-market requirements |
For wholesale sourcing, send this product URL, target quantity, required voltage, beam use, mounting position, packing request, and destination country. Wanghoi can confirm current batch details before sample or bulk order planning.
